The Essential Guide to Logic Gates

In the world of digital electronics, logic gates are the fundamental building blocks that perform various logical operations on one or more inputs to produce a single output. They are integral to computer architecture and digital systems, enabling the processing and decision-making capabilities of electronic devices.

In this blog post, we'll dive into the different types of logic gates, their functions, and how they are used in computing and digital circuit design.


What Are Logic Gates?

Logic gates are electronic components that process binary inputs (0s and 1s) and perform logical operations on them to generate specific outputs. These gates are crucial for performing arithmetic calculations, decision-making, and data processing in computers, calculators, and other digital systems.

Logic gates take one or more binary inputs and produce a single output based on their type. The output can either be high (1) or low (0), depending on the type of gate and the inputs provided.


Types of Logic Gates

There are seven basic types of logic gates, each with a unique function. Let’s explore each one in detail:

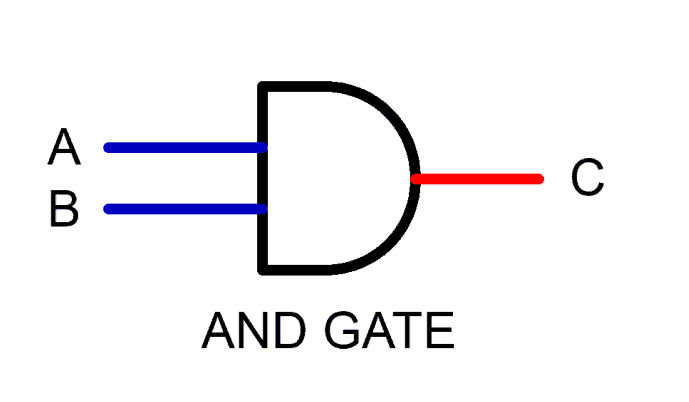

1. AND Gate

  • Function: The AND gate outputs 1 only if all its inputs are 1. Otherwise, the output is 0.
  • Truth Table:
    Input AInput BOutput
    000
    010
    100
    111
  • Use Case: AND gates are used in decision-making circuits where multiple conditions must be true to trigger an action.

2. OR Gate

  • Function: The OR gate outputs 1 if at least one of its inputs is 1. If both inputs are 0, the output is 0.
  • Truth Table:
    Input AInput BOutput
    000
    011
    101
    111
  • Use Case: OR gates are commonly used in situations where any one of several conditions triggers a specific action.

3. NOT Gate (Inverter)

  • Function: The NOT gate outputs the opposite of the input. If the input is 1, the output is 0, and if the input is 0, the output is 1.
  • Truth Table:
    Input AOutput
    01
    10
  • Use Case: NOT gates are used in circuits requiring inversion, such as inverting signals for control systems.

4. NAND Gate

  • Function: The NAND gate is the inverse of the AND gate. It outputs 0 only if all inputs are 1. Otherwise, the output is 1.
  • Truth Table:
    Input AInput BOutput
    001
    011
    101
    110
  • Use Case: NAND gates are widely used in memory storage and digital systems where the inverse of an AND operation is needed.

5. NOR Gate

  • Function: The NOR gate is the inverse of the OR gate. It outputs 0 if at least one of its inputs is 1. If both inputs are 0, the output is 1.
  • Truth Table:
    Input AInput BOutput
    001
    010
    100
    110
  • Use Case: NOR gates are commonly used in digital logic circuits that require a combination of negative logic.

6. XOR Gate (Exclusive OR)

  • Function: The XOR gate outputs 1 if only one of its inputs is 1 (exclusive). If both inputs are the same, the output is 0.
  • Truth Table:
    Input AInput BOutput
    000
    011
    101
    110
  • Use Case: XOR gates are used in digital systems for parity checking and error detection.

7. XNOR Gate (Exclusive NOR)

  • Function: The XNOR gate is the inverse of the XOR gate. It outputs 1 when both inputs are the same (both 0 or both 1).
  • Truth Table:
    Input AInput BOutput
    001
    010
    100
    111
  • Use Case: XNOR gates are useful in applications that require equality checking between two binary inputs.

Logic Gate Symbols

Each logic gate is represented by a unique symbol in circuit diagrams, making it easier to design and interpret digital systems. Here are the basic symbols for each logic gate:

  • AND Gate: A flat-ended shape with two inputs on the left and one output on the right.
  • OR Gate: A curved shape with two inputs on the left and one output on the right.
  • NOT Gate: A triangle pointing to a small circle, indicating the inversion of the input.
  • NAND Gate: An AND gate symbol with a small circle (representing negation) on the output.
  • NOR Gate: An OR gate symbol with a small circle on the output.
  • XOR Gate: An OR gate symbol with an extra curved line on the input side.
  • XNOR Gate: An XOR gate symbol with a small circle on the output side.


Applications of Logic Gates

Logic gates are widely used in the design of:

  1. Computers: For performing arithmetic operations, decision-making, and controlling the flow of data.
  2. Memory Devices: To store binary data and control access to stored information.
  3. Microcontrollers: Embedded in electronic devices to control various operations.
  4. Digital Circuits: Used in signal processing, networking, and communication systems.

Conclusion

Logic gates are the heart of all digital circuits, providing the logical framework for everything from basic arithmetic operations to complex data processing. Understanding these gates and their functions is essential for anyone interested in computer science, electronics, or digital systems design.
